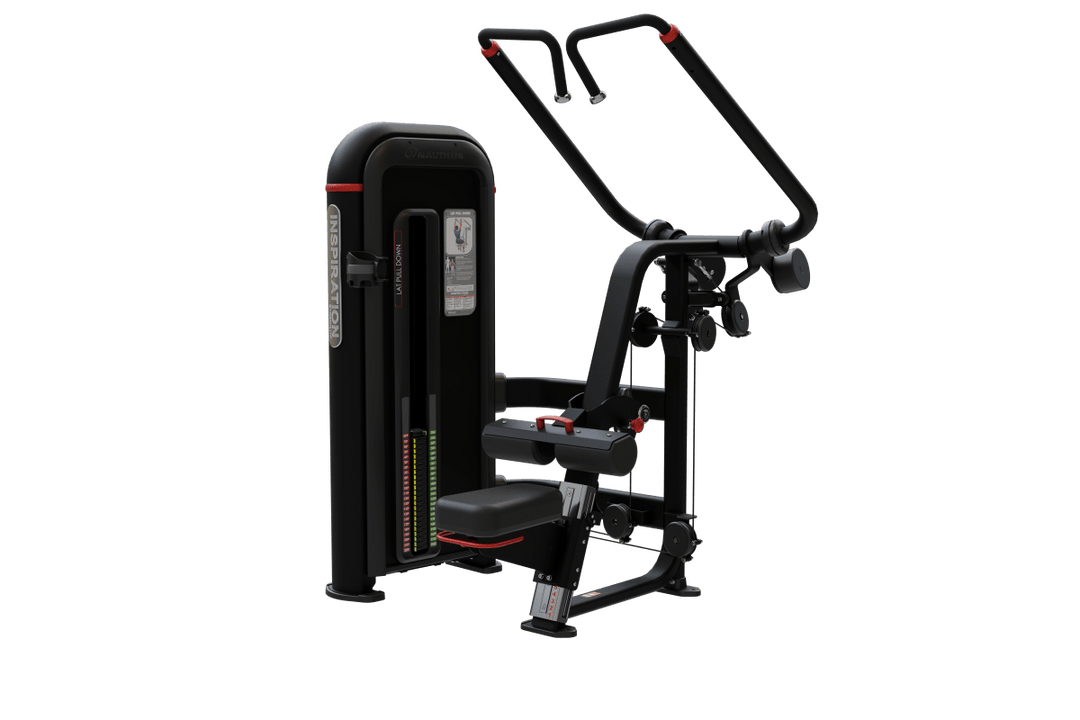

Nautilus Inspiration Lat Pulldown

Nautilus Inspiration Lat Pulldown

The Nautilus Inspiration Lat Pulldown is a commercial selectorized strength machine for seated upper-body pulling work. It is designed for back and lat training, with a fixed path of motion, diverging axis, and grip options that support both supinated and pronated pulling positions.

For Canadian commercial gyms, training studios, recreation centres, school facilities, condo fitness rooms, hotels, and workplace wellness spaces, a lat pulldown station is a core piece in a balanced strength circuit. This Nautilus Inspiration model gives facility operators a guided movement pattern, clear user setup points, and a 240 lb weight stack with 10 lb increments plus a 5 lb add-on for more precise loading.

The source product sheet lists wrap-around gas assist seat adjustment and gravity assisted thigh stabilization pad adjustment, helping users set a stable seated position before pulling. The machine supports unilateral and bilateral dependent movement, so users can perform one-arm or two-arm lat pulldown patterns within the same station. A 1:1 pulley ratio, cable transmission, defined bolt-down locations, and integrated leveling system support commercial installation planning.

Key features

• Commercial selectorized lat pulldown from the Nautilus Inspiration strength line.
• Diverging axis with standard supinated and pronated grip options.
• Unilateral and bilateral dependent movement options.
• Wrap-around gas assist seat adjustment and gravity assisted thigh stabilization pad adjustment.
• Lock N Load weight selection with 10 lb increments and a 5 lb add-on.
• Static instruction placard, color-coded adjustments, contoured pads, and integrated accessory holders.

The verified source lists assembled dimensions of 55 in W x 55 in L x 77 in H, an overall machine weight of 715 lb, and a shipping weight of 805 lb. Because this is an oversized commercial strength machine, freight, delivery access, placement, and installation requirements should be confirmed with Gym Concepts before purchase or checkout.

Contact Gym Concepts to confirm current price, availability, freight cost, delivery method, lead time, installation scope, and site access requirements for your facility.

Commercial selectorized lat pulldown for back and lat strength
Diverging axis for seated upper-body pulling movement
Standard supinated and pronated grip options
Wrap-around gas assist seat adjustment
Gravity assisted thigh stabilization pad adjustment
Unilateral and bilateral dependent movement options
Lock N Load weight selection with 10 lb increments and 5 lb add-on
Instruction placard, color-coded adjustments, contoured pads, and integrated accessory holders

Brand: Nautilus
Line: Inspiration selectorized strength
Model / SKU: IPPD5
Market segment: Commercial
Product family: Selectorized strength
Machine type: Lat pulldown
Training focus: Back / lat strength
Movement: Seated lat pulldown
Dimensions: 55 in W x 55 in L x 77 in H (140 cm x 140 cm x 196 cm)
Machine weight: 715 lb (324 kg)
Shipping weight: 805 lb (365 kg)
Weight stack: 240 lb (109 kg)
Incremental weight system: 10 lb increments with 5 lb add-on
Weight stack tower height: 64 in (163 cm)
Pulley ratio: 1:1
Axis: Diverging axis
Grip options: Standard supinated and pronated grip options
Seat adjustment: Wrap-around gas assist seat adjustment
Thigh stabilization: Gravity assisted thigh stabilization pad adjustments
Movement options: Unilateral and bilateral dependent movement
Frame and upholstery color: Black
Frame finish: Electrostatic powder coating
Transmission: Cable
Bolt-down locations: Defined
Integrated leveling system: Yes
Instruction placard: Static placard with large graphical multi-language placard option
Safety stops: End range of motion safety stop
Accessory holders: Integrated water bottle holder and adjustable phone holder
Pads: Contoured pads

Warranty – United States / Canada

For Nautilus Inspiration Strength equipment, Core Health & Fitness lists warranty coverage by use category:

Commercial use
For facilities that charge dues and/or use the equipment more than 8 hours per day:
10 years on structural frame, excluding coatings
5 years parts on major mechanical components, including guide rods, plates, bearings, etc.
1 year on minor mechanical components, including plate switches, cables, grips, etc.
1 year on upholstery
1 year labor

Light commercial / vertical use
For non-dues-paying facilities with less than 8 hours per day usage:
10 years on structural frame, excluding coatings
5 years parts on major mechanical components, including guide rods, plates, bearings, etc.
3 years on minor mechanical components, including plate switches, cables, grips, etc.
1 year on upholstery
3 years labor

Consumer / home use
For home settings where equipment is used by home occupants only:
10 years on structural frame, excluding coatings
10 years parts on major mechanical components, including guide rods, plates, bearings, etc.
10 years on minor mechanical components, including plate switches, cables, grips, etc.
1 year on upholstery
3 years labor

Warranty coverage depends on use category, registration, installation date, country, and Core Health & Fitness warranty terms. Confirm final warranty eligibility with Gym Concepts before purchase.

This is an oversized commercial strength machine with a sourced shipping weight of 805 lb (365 kg). Freight, delivery access, placement, and installation requirements should be confirmed with Gym Concepts before purchase or checkout. Final freight cost, delivery method, lead time, and installation scope are not included unless confirmed separately.

What muscle group does this machine train?
The Nautilus Inspiration Lat Pulldown is designed for back and lat strength training.

What is the model / SKU?
The sourced manufacturer model / SKU is IPPD5.

Is this a commercial product?
Yes. The current Shopify Product Type / Market Segment is Commercial, and the product is positioned as a commercial selectorized strength machine.

What are the assembled dimensions?
The verified source lists dimensions of 55 in W x 55 in L x 77 in H (140 cm x 140 cm x 196 cm).

What is the weight stack?
The verified product sheet lists a 240 lb (109 kg) total weight stack with 10 lb increments and a 5 lb add-on.

Does this product require special delivery planning?
Yes. The verified source lists a shipping weight of 805 lb (365 kg), so freight, site access, placement, and installation requirements should be confirmed with Gym Concepts before purchase or checkout.

What should be confirmed before ordering?
Confirm current price, availability, freight cost, delivery method, lead time, site access, and installation scope with Gym Concepts before purchase.
